Spring Security + Hibernate XML Example

By：Roy.LiuLast updated：2019-08-17

In this tutorial, we will show you how to integrate Hibernate 4 in Spring Security, XML configuration example.

Note
For annotation version, please read this Spring Security + Hibernate Annotation Example.

Technologies used :

Spring 3.2.8.RELEASE
Spring Security 3.2.3.RELEASE
Hibernate 4.2.11.Final
MySQL Server 5.6
JDK 1.6
Maven 3
Eclipse 4.3

Quick Notes

Create a session factory with hibernate4.LocalSessionFactoryBean
Inject session factory into a UserDao
To integrate with Spring Security, create a class that implements the UserDetailsService interface, and loads the User with UserDao
Transaction manager must be declared, else Hibernate won’t work in Spring

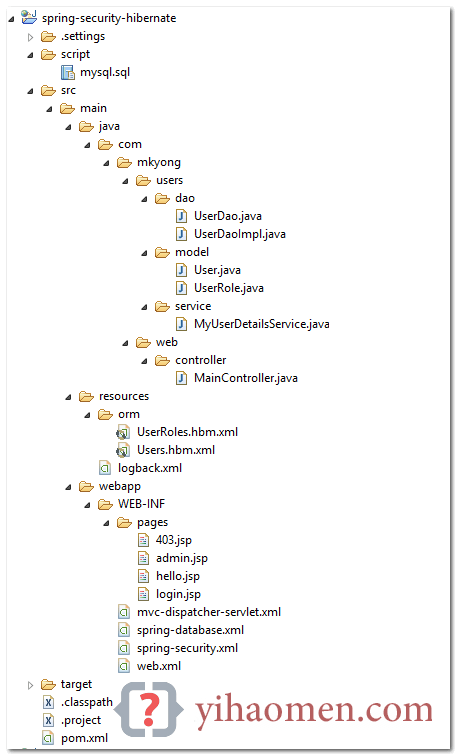

1. Project Directory

A final project directory structure.

2. Project Dependency

List of the project’s dependencies in POM file.

pom.xml

	<properties>
		<spring.version>3.2.8.RELEASE</spring.version>
		<spring.security.version>3.2.3.RELEASE</spring.security.version>
		<jstl.version>1.2</jstl.version>
		<mysql.connector.version>5.1.30</mysql.connector.version>
		<logback.version>1.1.2</logback.version>
		<slf4j.version>1.7.6</slf4j.version>
		<hibernate.version>4.2.11.Final</hibernate.version>
		<dbcp.version>1.4</dbcp.version>
		<servletapi.version>2.5</servletapi.version>
	</properties>
	<dependencies>
		<!-- database pool -->
		<dependency>
			<groupId>commons-dbcp</groupId>
			<artifactId>commons-dbcp</artifactId>
			<version>${dbcp.version}</version>
		</dependency>
		<!-- Hibernate ORM -->
		<dependency>
			<groupId>org.hibernate</groupId>
			<artifactId>hibernate-core</artifactId>
			<version>${hibernate.version}</version>
		</dependency>
		<!-- Spring 3 dependencies -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-core</artifactId>
			<version>${spring.version}</version>
			<exclusions>
			  <exclusion>
				<groupId>commons-logging</groupId>
				<artifactId>commons-logging</artifactId>
			  </exclusion>
			</exclusions>
		</dependency>
		<!-- Spring MVC -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<!-- Spring + aspects -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-aspects</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<!-- ORM integration, e.g Hibernate -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-orm</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<!-- Spring Security -->
		<dependency>
			<groupId>org.springframework.security</groupId>
			<artifactId>spring-security-web</artifactId>
			<version>${spring.security.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework.security</groupId>
			<artifactId>spring-security-config</artifactId>
			<version>${spring.security.version}</version>
		</dependency>
		<!-- Spring Security JSP Taglib -->
		<dependency>
			<groupId>org.springframework.security</groupId>
			<artifactId>spring-security-taglibs</artifactId>
			<version>${spring.security.version}</version>
		</dependency>
		<!-- jstl for jsp page -->
		<dependency>
			<groupId>jstl</groupId>
			<artifactId>jstl</artifactId>
			<version>${jstl.version}</version>
		</dependency>
		<!-- MySql Driver -->
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>${mysql.connector.version}</version>
		</dependency>
		<!-- logging, slf4j -->
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-api</artifactId>
			<version>${slf4j.version}</version>
		</dependency>
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>jcl-over-slf4j</artifactId>
			<version>${slf4j.version}</version>
		</dependency>
		<dependency>
			<groupId>ch.qos.logback</groupId>
			<artifactId>logback-classic</artifactId>
			<version>${logback.version}</version>
		</dependency>
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>servlet-api</artifactId>
			<version>${servletapi.version}</version>
			<scope>provided</scope>
		</dependency>
	</dependencies>

3. User Tables

SQL script to create tables to store user and user’s role.

mysql.sql

CREATE  TABLE users (
  username VARCHAR(45) NOT NULL ,
  password VARCHAR(60) NOT NULL ,
  enabled TINYINT NOT NULL DEFAULT 1 ,
  PRIMARY KEY (username));
CREATE TABLE user_roles (
  user_role_id int(11) NOT NULL AUTO_INCREMENT,
  username varchar(45) NOT NULL,
  role varchar(45) NOT NULL,
  PRIMARY KEY (user_role_id),
  UNIQUE KEY uni_username_role (role,username),
  KEY fk_username_idx (username),
  CONSTRAINT fk_username FOREIGN KEY (username) REFERENCES users (username));
INSERT INTO users(username,password,enabled)
VALUES ('mkyong','$2a$10$04TVADrR6/SPLBjsK0N30.Jf5fNjBugSACeGv1S69dZALR7lSov0y', true);
INSERT INTO users(username,password,enabled)
VALUES ('alex','$2a$10$04TVADrR6/SPLBjsK0N30.Jf5fNjBugSACeGv1S69dZALR7lSov0y', true);
INSERT INTO user_roles (username, role)
VALUES ('mkyong', 'ROLE_USER');
INSERT INTO user_roles (username, role)
VALUES ('mkyong', 'ROLE_ADMIN');
INSERT INTO user_roles (username, role)
VALUES ('alex', 'ROLE_USER');

4. User Model + Hibernate XML Mapping

Model classes and its’ XML mapping file.

User.java

package com.mkyong.users.model;
import java.util.HashSet;
import java.util.Set;
public class User {
	private String username;
	private String password;
	private boolean enabled;
	private Set<UserRole> userRole = new HashSet<UserRole>(0);
	//getter and setter methods

UserRole.java

package com.mkyong.users.model;
public class UserRole{
	private Integer userRoleId;
	private User user;
	private String role;
	//getter and setter methods

Users.hbm.xml

<?xml version="1.0"?>
<!DOCTYPE hibernate-mapping PUBLIC "-//Hibernate/Hibernate Mapping DTD 3.0//EN"
"http://www.hibernate.org/dtd/hibernate-mapping-3.0.dtd">
<hibernate-mapping>
    <class name="com.mkyong.users.model.User" table="users" catalog="test">
        <id name="username" type="string">
            <column name="username" length="45" />
            <generator class="assigned" />
        </id>
        <property name="password" type="string">
            <column name="password" length="60" not-null="true" />
        </property>
        <property name="enabled" type="boolean">
            <column name="enabled" not-null="true" />
        </property>
        <set name="userRole" table="user_roles" inverse="true" lazy="true" fetch="select">
            <key>
                <column name="username" length="45" not-null="true" />
            </key>
            <one-to-many class="com.mkyong.users.model.UserRole" />
        </set>
    </class>
</hibernate-mapping>

UserRoles.hbm.xml

<?xml version="1.0"?>
<!DOCTYPE hibernate-mapping PUBLIC "-//Hibernate/Hibernate Mapping DTD 3.0//EN"
"http://www.hibernate.org/dtd/hibernate-mapping-3.0.dtd">
<hibernate-mapping>
    <class name="com.mkyong.users.model.UserRole" table="user_roles" catalog="test">
        <id name="userRoleId" type="java.lang.Integer">
            <column name="user_role_id" />
            <generator class="identity" />
        </id>
        <many-to-one name="user" class="com.mkyong.users.model.User" fetch="select">
            <column name="username" length="45" not-null="true" />
        </many-to-one>
        <property name="role" type="string">
            <column name="role" length="45" not-null="true" />
        </property>
    </class>
</hibernate-mapping>

5. DAO Class

Create a UserDao class to load users from the database, via Hibernate.

UserDao.java

package com.mkyong.users.dao;
import com.mkyong.users.model.User;
public interface UserDao {
	User findByUserName(String username);

UserDaoImpl.java

package com.mkyong.users.dao;
import java.util.ArrayList;
import java.util.List;
import org.hibernate.SessionFactory;
import com.mkyong.users.model.User;
public class UserDaoImpl implements UserDao {
	private SessionFactory sessionFactory;
	@SuppressWarnings("unchecked")
	public User findByUserName(String username) {
		List<User> users = new ArrayList<User>();
		users = getSessionFactory().getCurrentSession()
			.createQuery("from User where username=?")
			.setParameter(0, username).list();
		if (users.size() > 0) {
			return users.get(0);
		} else {
			return null;
	public SessionFactory getSessionFactory() {
		return sessionFactory;
	public void setSessionFactory(SessionFactory sessionFactory) {
		this.sessionFactory = sessionFactory;

6. UserDetailsService

Create a custom UserDetailsService, load user from UserDao, then build the user’s authorities.

Note
Example is reference from this Spring’s JdbcDaoImpl

MyUserDetailsService.java

package com.mkyong.users.service;
import java.util.ArrayList;
import java.util.HashSet;
import java.util.List;
import java.util.Set;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import com.mkyong.users.dao.UserDao;
import com.mkyong.users.model.UserRole;
public class MyUserDetailsService implements UserDetailsService {
	private UserDao userDao;
	@Override
	public UserDetails loadUserByUsername(final String username)
               throws UsernameNotFoundException {
		com.mkyong.users.model.User user = userDao.findByUserName(username);
		List<GrantedAuthority> authorities = buildUserAuthority(user.getUserRole());
		return buildUserForAuthentication(user, authorities);
	// Converts com.mkyong.users.model.User user to
	// org.springframework.security.core.userdetails.User
	private User buildUserForAuthentication(com.mkyong.users.model.User user,
		List<GrantedAuthority> authorities) {
		return new User(user.getUsername(),
			user.getPassword(), user.isEnabled(),
                        true, true, true, authorities);
	private List<GrantedAuthority> buildUserAuthority(Set<UserRole> userRoles) {
		Set<GrantedAuthority> setAuths = new HashSet<GrantedAuthority>();
		// Build user's authorities
		for (UserRole userRole : userRoles) {
			setAuths.add(new SimpleGrantedAuthority(userRole.getRole()));
		List<GrantedAuthority> Result = new ArrayList<GrantedAuthority>(setAuths);
		return Result;
	public UserDao getUserDao() {
		return userDao;
	public void setUserDao(UserDao userDao) {
		this.userDao = userDao;

7. Spring Security XML

Read the comments, it should be self-explanatory.

spring-security.xml

<beans:beans xmlns="http://www.springframework.org/schema/security"
	xmlns:beans="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
	http://www.springframework.org/schema/security
	http://www.springframework.org/schema/security/spring-security-3.2.xsd">
	<!-- enable use-expressions -->
	<http auto-config="true" use-expressions="true">
		<intercept-url pattern="/admin**" access="hasRole('ROLE_ADMIN')" />
		<!-- access denied page -->
		<access-denied-handler error-page="/403" />
		<form-login
		    login-page="/login"
		    default-target-url="/welcome"
			authentication-failure-url="/login?error"
			username-parameter="username"
			password-parameter="password" />
		<logout logout-success-url="/login?logout" />
		<!-- enable csrf protection -->
		<csrf />
	</http>
	<authentication-manager>
		<authentication-provider user-service-ref="myUserDetailsService" >
			<password-encoder hash="bcrypt" />
		</authentication-provider>
	</authentication-manager>
</beans:beans>

spring-database.xml

<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:tx="http://www.springframework.org/schema/tx"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
	http://www.springframework.org/schema/aop
	http://www.springframework.org/schema/aop/spring-aop-3.0.xsd
	http://www.springframework.org/schema/tx
    http://www.springframework.org/schema/tx/spring-tx-3.0.xsd">
	<!-- MySQL data source -->
	<bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource"
		destroy-method="close">
		<property name="driverClassName" value="com.mysql.jdbc.Driver" />
		<property name="url" value="jdbc:mysql://localhost:3306/test" />
		<property name="username" value="root" />
		<property name="password" value="password" />
	</bean>
	<!-- Hibernate session factory -->
	<bean id="sessionFactory"
		class="org.springframework.orm.hibernate4.LocalSessionFactoryBean">
		<property name="dataSource" ref="dataSource" />
		<property name="mappingResources">
			<list>
				<value>orm/Users.hbm.xml</value>
				<value>orm/UserRoles.hbm.xml</value>
			</list>
		</property>
		<property name="hibernateProperties">
		    <props>
			<prop key="hibernate.dialect">
                           org.hibernate.dialect.MySQL5Dialect
                        </prop>
			<prop key="hibernate.format_sql">true</prop>
			<prop key="hibernate.show_sql">true</prop>
		    </props>
		</property>
	</bean>
	<bean id="userDao" class="com.mkyong.users.dao.UserDaoImpl">
		<property name="sessionFactory" ref="sessionFactory" />
	</bean>
	<bean id="myUserDetailsService"
                class="com.mkyong.users.service.MyUserDetailsService">
		<property name="userDao" ref="userDao" />
	</bean>
	<!-- MUST have transaction manager, using aop and aspects  -->
	<bean id="transactionManager"
		class="org.springframework.orm.hibernate4.HibernateTransactionManager">
		<property name="sessionFactory" ref="sessionFactory"></property>
	</bean>
	<tx:advice id="txAdvice" transaction-manager="transactionManager">
	    <tx:attributes>
		<tx:method name="get*" read-only="true" />
		<tx:method name="find*" read-only="true" />
		<tx:method name="*" />
	    </tx:attributes>
	</tx:advice>
	<aop:config>
	    <aop:pointcut id="userServicePointCut"
		expression="execution(* com.mkyong.users.service.*Service.*(..))" />
	    <aop:advisor advice-ref="txAdvice" pointcut-ref="userServicePointCut" />
	</aop:config>
</beans>

Done.

Note
Those JSP, web.xml and controller files are omitted, it’s quite a standard code, if you are interested on it, please download the full source code at the end of the article.

8. Project Demo

The following video demo is for the Spring Security database login with JDBC tutorial. Since this tutorial is generating the same output, but using the Hibernate to load Users, so the video demo is reused.

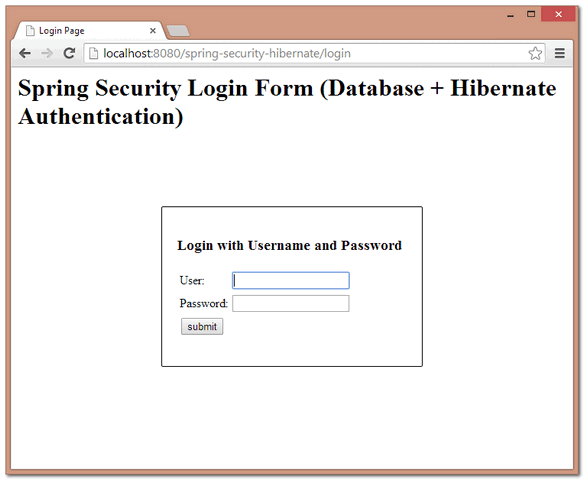

8.1 Access a password protected page : http://localhost:8080/spring-security-hibernate/admin , a login page is displayed.

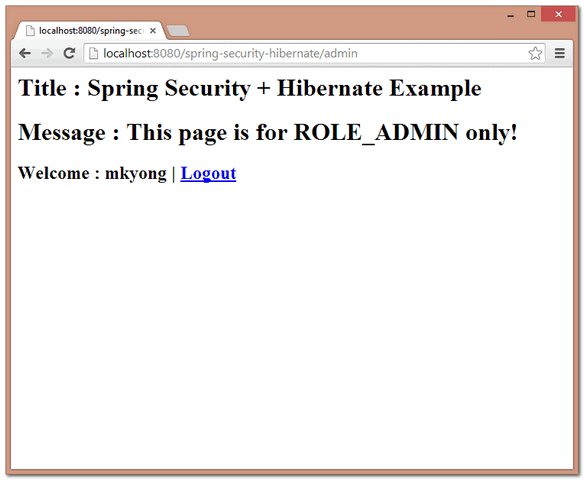

8.2 Enter user “mkyong” and password “123456”.

8.3 Try access /admin page with user “alex” and password “123456”, a 403 page will be displayed.

References

From：一号门

Tags: hibernate spring hibernate spring security

Previous:log4j.xml Example

Next:java.lang.ClassNotFoundException: org.hibernate.service.jta.platform.spi.JtaPlatform

COMMENTS
