Gradle Spring 4 MVC Hello World Example

By：Roy.LiuLast updated：2019-08-17

In this tutorial, we will show you a Gradle + Spring 4 MVC, Hello World Example (JSP view), XML configuration.

Technologies used :

Gradle 2.0
Spring 4.1.6.RELEASE
Eclipse 4.4
JDK 1.7
Logback 1.1.3
Boostrap 3

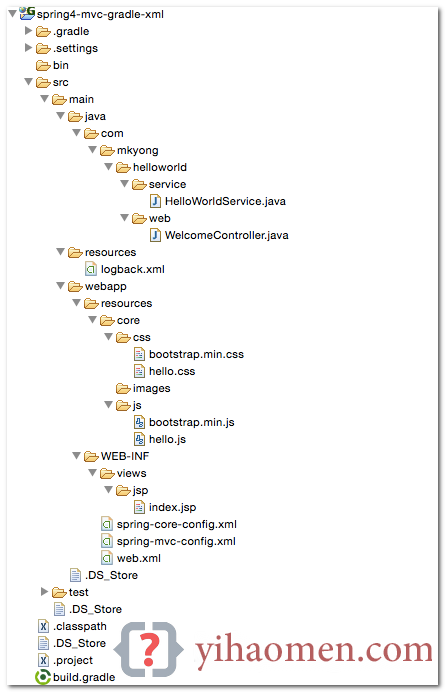

1. Project Structure

Download the project source code and review the project folder structure :

2. Gradle Build

2.1 Review the build.gradle file, this should be self-explanatory.

build.gradle

apply plugin: 'java'
apply plugin: 'war'
apply plugin: 'eclipse-wtp'
apply plugin: 'jetty'
// JDK 7
sourceCompatibility = 1.7
targetCompatibility = 1.7
repositories {
    mavenLocal()
    mavenCentral()
dependencies {
	compile 'ch.qos.logback:logback-classic:1.1.3'
	compile 'org.springframework:spring-webmvc:4.1.6.RELEASE'
	compile 'javax.servlet:jstl:1.2'
// Embeded Jetty for testing
jettyRun{
	contextPath = "spring4"
	httpPort = 8080
jettyRunWar{
	contextPath = "spring4"
	httpPort = 8080
//For Eclipse IDE only
eclipse {
  wtp {
    component {
      //define context path, default to project folder name
      contextPath = 'spring4'

2.2 To make this project supports Eclipse IDE, issues gradle eclipse :

your-project$ gradle eclipse

3. Spring MVC

Spring MVC related stuff.

3.1 Spring Controller – @Controller and @RequestMapping.

WelcomeController.java

package com.mkyong.helloworld.web;
import java.util.Map;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.servlet.ModelAndView;
import com.mkyong.helloworld.service.HelloWorldService;
@Controller
public class WelcomeController {
	private final Logger logger = LoggerFactory.getLogger(WelcomeController.class);
	private final HelloWorldService helloWorldService;
	@Autowired
	public WelcomeController(HelloWorldService helloWorldService) {
		this.helloWorldService = helloWorldService;
	@RequestMapping(value = "/", method = RequestMethod.GET)
	public String index(Map<String, Object> model) {
		logger.debug("index() is executed!");
		model.put("title", helloWorldService.getTitle(""));
		model.put("msg", helloWorldService.getDesc());
		return "index";
	@RequestMapping(value = "/hello/{name:.+}", method = RequestMethod.GET)
	public ModelAndView hello(@PathVariable("name") String name) {
		logger.debug("hello() is executed - $name {}", name);
		ModelAndView model = new ModelAndView();
		model.setViewName("index");
		model.addObject("title", helloWorldService.getTitle(name));
		model.addObject("msg", helloWorldService.getDesc());
		return model;

3.2 A service to generate a message.

HelloWorldService.java

package com.mkyong.helloworld.service;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Service;
import org.springframework.util.StringUtils;
@Service
public class HelloWorldService {
	private static final Logger logger = LoggerFactory.getLogger(HelloWorldService.class);
	public String getDesc() {
		logger.debug("getDesc() is executed!");
		return "Gradle + Spring MVC Hello World Example";
	public String getTitle(String name) {
		logger.debug("getTitle() is executed! $name : {}", name);
		if(StringUtils.isEmpty(name)){
			return "Hello World";
		}else{
			return "Hello " + name;

3.3 Views – JSP + JSTL + bootstrap. A simple JSP page to display the model, and includes the static resources like css and js.

/WEB-INF/views/jsp/index.jsp

<%@ taglib prefix="spring" uri="http://www.springframework.org/tags"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<!DOCTYPE html>
<html lang="en">
<head>
<title>Gradle + Spring MVC</title>
<spring:url value="/resources/core/css/hello.css" var="coreCss" />
<spring:url value="/resources/core/css/bootstrap.min.css" var="bootstrapCss" />
<link href="${bootstrapCss}" rel="stylesheet" />
<link href="${coreCss}" rel="stylesheet" />
</head>
<nav class="navbar navbar-inverse navbar-fixed-top">
  <div class="container">
	<div class="navbar-header">
		<a class="navbar-brand" href="#">Project Name</a>
	</div>
  </div>
</nav>
<div class="jumbotron">
  <div class="container">
	<h1>${title}</h1>
	<p>
		<c:if test="${not empty msg}">
			Hello ${msg}
		</c:if>
		<c:if test="${empty msg}">
			Welcome Welcome!
		</c:if>
        </p>
        <p>
		<a class="btn btn-primary btn-lg"
                    href="#" role="button">Learn more</a>
	</p>
	</div>
</div>
<div class="container">
  <div class="row">
	<div class="col-md-4">
		<h2>Heading</h2>
		<p>ABC</p>
		<p>
			<a class="btn btn-default" href="#" role="button">View details</a>
		</p>
	</div>
	<div class="col-md-4">
		<h2>Heading</h2>
		<p>ABC</p>
		<p>
			<a class="btn btn-default" href="#" role="button">View details</a>
		</p>
	</div>
	<div class="col-md-4">
		<h2>Heading</h2>
		<p>ABC</p>
		<p>
			<a class="btn btn-default" href="#" role="button">View details</a>
		</p>
	</div>
  </div>
  <hr>
  <footer>
	<p>© Mkyong.com 2015</p>
  </footer>
</div>
<spring:url value="/resources/core/css/hello.js" var="coreJs" />
<spring:url value="/resources/core/css/bootstrap.min.js" var="bootstrapJs" />
<script src="${coreJs}"></script>
<script src="${bootstrapJs}"></script>
<script src="https://ajax.googleapis.com/ajax/libs/jquery/1.11.2/jquery.min.js"></script>
</body>
</html>

3.4 Logging – Send all logs to console.

logback.xml

<?xml version="1.0" encoding="UTF-8"?>
<configuration>
	<appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
	  <layout class="ch.qos.logback.classic.PatternLayout">
		<Pattern>
		%d{yyyy-MM-dd HH:mm:ss} [%thread] %-5level %logger{36} - %msg%n
		</Pattern>
	  </layout>
	</appender>
	<logger name="org.springframework" level="debug"
                additivity="false">
		<appender-ref ref="STDOUT" />
	</logger>
	<logger name="com.mkyong.helloworld" level="debug"
                additivity="false">
		<appender-ref ref="STDOUT" />
	</logger>
	<root level="debug">
		<appender-ref ref="STDOUT" />
	</root>
</configuration>

4. Spring XML Configuration

Spring XML configuration files.

4.1 Spring root context.

spring-core-config.xml

<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xsi:schemaLocation="
        http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd ">
	<context:component-scan base-package="com.mkyong.helloworld.service" />
</beans>

4.2 Spring web or servlet context.

spring-web-config.xml

<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xsi:schemaLocation="
        http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/mvc
        http://www.springframework.org/schema/mvc/spring-mvc.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd ">
	<context:component-scan base-package="com.mkyong.helloworld.web" />
	<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<property name="viewClass" value="org.springframework.web.servlet.view.JstlView"/>
		<property name="prefix" value="/WEB-INF/views/jsp/" />
		<property name="suffix" value=".jsp" />
	</bean>
	<mvc:resources mapping="/resources/**" location="/resources/" />
	<mvc:annotation-driven />
</beans>

4.3 Classic web.xml

web.xml

<web-app xmlns="http://java.sun.com/xml/ns/javaee"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
	http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
	version="2.5">
	<display-name>Gradle + Spring MVC Hello World + XML</display-name>
	<description>Spring MVC web application</description>
	<!-- For web context -->
	<servlet>
		<servlet-name>hello-dispatcher</servlet-name>
		<servlet-class>
                        org.springframework.web.servlet.DispatcherServlet
                </servlet-class>
		<init-param>
			<param-name>contextConfigLocation</param-name>
			<param-value>/WEB-INF/spring-mvc-config.xml</param-value>
		</init-param>
		<load-on-startup>1</load-on-startup>
	</servlet>
	<servlet-mapping>
		<servlet-name>hello-dispatcher</servlet-name>
		<url-pattern>/</url-pattern>
	</servlet-mapping>
	<!-- For root context -->
	<listener>
		<listener-class>
                  org.springframework.web.context.ContextLoaderListener
                </listener-class>
	</listener>
	<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>/WEB-INF/spring-core-config.xml</param-value>
	</context-param>
</web-app>

5. Demo

5.1 The gradle.build file is defined an embedded Jetty container. Issues gradle jettyRun to start the project.

Terminal

your-project$ gradle jettyRun
:compileJava
:processResources
:classes
:jettyRun
//...SLF4j logging
> Building 75% > :jettyRun > Running at http://localhost:8080/spring4

5.2 http://localhost:8080/spring4/

5.3 http://localhost:8080/spring4/hello/mkyong.com

6. WAR File

To create a WAR file for deployment :

Terminal

your-project$ gradle war

A WAR file will be created in project\build\libs folder.


${Project}\build\libs\spring-web-gradle-xml.war

Download Source Code

Download It – spring4-mvc-gradle-xml.zip (61 KB)

Github link – spring4-mvc-gradle-xml-hello-world.git
