Spring Boot file upload example Ajax and REST

This article shows you how to upload files in Spring Boot web application (REST structure), using Ajax requests.

Tools used in this article :

1. Spring Boot 1.4.3.RELEASE
2. Spring 4.3.5.RELEASE
3. Thymeleaf
4. jQuery (webjars)
5. Maven
6. Embedded Tomcat 8.5.6
7. Google Chrome Browser (Network Inspect)

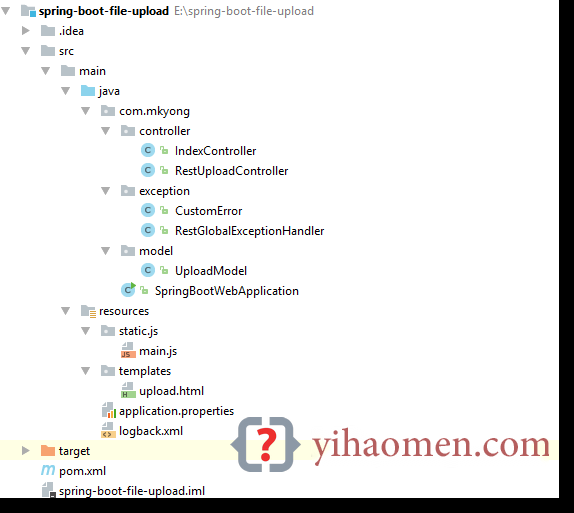

1. Project Structure

A standard Maven project structure.

2. Project Dependency

Declares an extra jQuery webjar dependency, for Ajax requests in HTML form.

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
         http://maven.apache.org/maven-v4_0_0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.mkyong</groupId>
    <artifactId>spring-boot-file-upload</artifactId>
    <packaging>jar</packaging>
    <version>1.0</version>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>1.4.3.RELEASE</version>
    </parent>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <!-- hot swapping, disable cache for template, enable live reload -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.webjars</groupId>
            <artifactId>jquery</artifactId>
            <version>2.2.4</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <!-- Package as an executable jar/war -->
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

3. File Upload

To support Ajax request and response, the easiest solution is returned a ResponseEntity.

3.1 The below example demonstrates three possible ways to upload files:

1. Single file upload – MultipartFile
2. Multiple file upload – MultipartFile[]
3. Map file upload to a Model – @ModelAttribute

package com.mkyong.controller;
import com.mkyong.model.UploadModel;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.http.HttpHeaders;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.util.StringUtils;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.multipart.MultipartFile;
import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;
import java.util.Arrays;
import java.util.List;
import java.util.stream.Collectors;
@RestController
public class RestUploadController {
    private final Logger logger = LoggerFactory.getLogger(RestUploadController.class);
    //Save the uploaded file to this folder
    private static String UPLOADED_FOLDER = "F://temp//";
    // 3.1.1 Single file upload
    @PostMapping("/api/upload")
    // If not @RestController, uncomment this
    //@ResponseBody
    public ResponseEntity<?> uploadFile(
            @RequestParam("file") MultipartFile uploadfile) {
        logger.debug("Single file upload!");
        if (uploadfile.isEmpty()) {
            return new ResponseEntity("please select a file!", HttpStatus.OK);
        try {
            saveUploadedFiles(Arrays.asList(uploadfile));
        } catch (IOException e) {
            return new ResponseEntity<>(HttpStatus.BAD_REQUEST);
        return new ResponseEntity("Successfully uploaded - " +
                uploadfile.getOriginalFilename(), new HttpHeaders(), HttpStatus.OK);
    // 3.1.2 Multiple file upload
    @PostMapping("/api/upload/multi")
    public ResponseEntity<?> uploadFileMulti(
            @RequestParam("extraField") String extraField,
            @RequestParam("files") MultipartFile[] uploadfiles) {
        logger.debug("Multiple file upload!");
        // Get file name
        String uploadedFileName = Arrays.stream(uploadfiles).map(x -> x.getOriginalFilename())
                .filter(x -> !StringUtils.isEmpty(x)).collect(Collectors.joining(" , "));
        if (StringUtils.isEmpty(uploadedFileName)) {
            return new ResponseEntity("please select a file!", HttpStatus.OK);
        try {
            saveUploadedFiles(Arrays.asList(uploadfiles));
        } catch (IOException e) {
            return new ResponseEntity<>(HttpStatus.BAD_REQUEST);
        return new ResponseEntity("Successfully uploaded - "
                + uploadedFileName, HttpStatus.OK);
    // 3.1.3 maps html form to a Model
    @PostMapping("/api/upload/multi/model")
    public ResponseEntity<?> multiUploadFileModel(@ModelAttribute UploadModel model) {
        logger.debug("Multiple file upload! With UploadModel");
        try {
            saveUploadedFiles(Arrays.asList(model.getFiles()));
        } catch (IOException e) {
            return new ResponseEntity<>(HttpStatus.BAD_REQUEST);
        return new ResponseEntity("Successfully uploaded!", HttpStatus.OK);
    //save file
    private void saveUploadedFiles(List<MultipartFile> files) throws IOException {
        for (MultipartFile file : files) {
            if (file.isEmpty()) {
                continue; //next pls
            byte[] bytes = file.getBytes();
            Path path = Paths.get(UPLOADED_FOLDER + file.getOriginalFilename());
            Files.write(path, bytes);

3.2 A simple model for above example 3.1.3 – @ModelAttribute

package com.mkyong.model;
import org.springframework.web.multipart.MultipartFile;
public class UploadModel {
    private String extraField;
    private MultipartFile[] files;
    //getters and setters

4. The Views

HTML form for multiple file uploads.

<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org">
<body>
<h1>Spring Boot - Multiple file upload example - AJAX</h1>
<form method="POST" enctype="multipart/form-data" id="fileUploadForm">
    <input type="text" name="extraField"/><br/><br/>
    <input type="file" name="files"/><br/><br/>
    <input type="file" name="files"/><br/><br/>
    <input type="submit" value="Submit" id="btnSubmit"/>
</form>
<h1>Ajax Post Result</h1>
<pre>
    <span id="result"></span>
</pre>
<script type="text/javascript"
        src="webjars/jquery/2.2.4/jquery.min.js"></script>
<script type="text/javascript" src="js/main.js"></script>
</body>
</html>

5. jQuery – Ajax Request

jQuery to get the form via form #id, and send the multipart form data via Ajax request.

$(document).ready(function () {
    $("#btnSubmit").click(function (event) {
        //stop submit the form, we will post it manually.
        event.preventDefault();
        fire_ajax_submit();
    });
});
function fire_ajax_submit() {
    // Get form
    var form = $('#fileUploadForm')[0];
    var data = new FormData(form);
    data.append("CustomField", "This is some extra data, testing");
    $("#btnSubmit").prop("disabled", true);
    $.ajax({
        type: "POST",
        enctype: 'multipart/form-data',
        url: "/api/upload/multi",
        data: data,
        //http://api.jquery.com/jQuery.ajax/
        //https://developer.mozilla.org/en-US/docs/Web/API/FormData/Using_FormData_Objects
        processData: false, //prevent jQuery from automatically transforming the data into a query string
        contentType: false,
        cache: false,
        timeout: 600000,
        success: function (data) {
            $("#result").text(data);
            console.log("SUCCESS : ", data);
            $("#btnSubmit").prop("disabled", false);
        },
        error: function (e) {
            $("#result").text(e.responseText);
            console.log("ERROR : ", e);
            $("#btnSubmit").prop("disabled", false);
    });

6. Exception Handler

To handle exception from Ajax request, just extends ResponseEntityExceptionHandler and return back a ResponseEntity.

package com.mkyong.exception;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.ControllerAdvice;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.multipart.MultipartException;
import org.springframework.web.servlet.mvc.method.annotation.ResponseEntityExceptionHandler;
import javax.servlet.http.HttpServletRequest;
//http://docs.spring.io/spring-boot/docs/current/reference/htmlsingle/#boot-features-error-handling
@ControllerAdvice
public class RestGlobalExceptionHandler extends ResponseEntityExceptionHandler {
    // Catch file size exceeded exception!
    @ExceptionHandler(MultipartException.class)
    @ResponseBody
    ResponseEntity<?> handleControllerException(HttpServletRequest request, Throwable ex) {
        HttpStatus status = getStatus(request);
        return new ResponseEntity(ex.getMessage(), status);
        // example
        //return new ResponseEntity("success", responseHeaders, HttpStatus.OK);
    private HttpStatus getStatus(HttpServletRequest request) {
        Integer statusCode = (Integer) request.getAttribute("javax.servlet.error.status_code");
        if (statusCode == null) {
            return HttpStatus.INTERNAL_SERVER_ERROR;
        return HttpStatus.valueOf(statusCode);

7. DEMO

Start Spring Boot with the default embedded Tomcat mvn spring-boot:run.

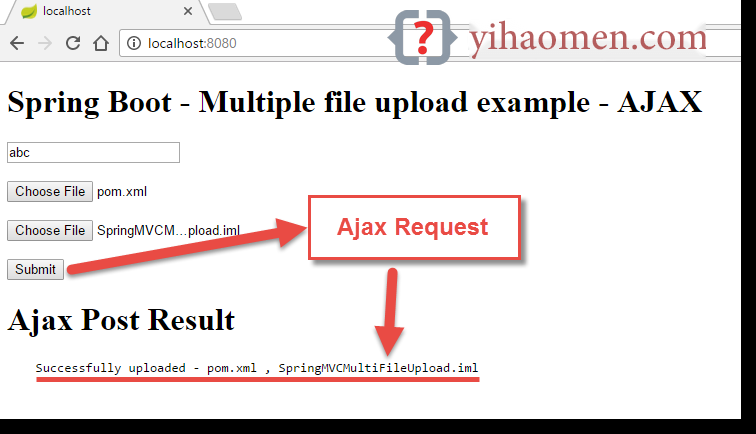

7.1 Access http://localhost:8080/, select few files and clicks submit to fire the ajax request.

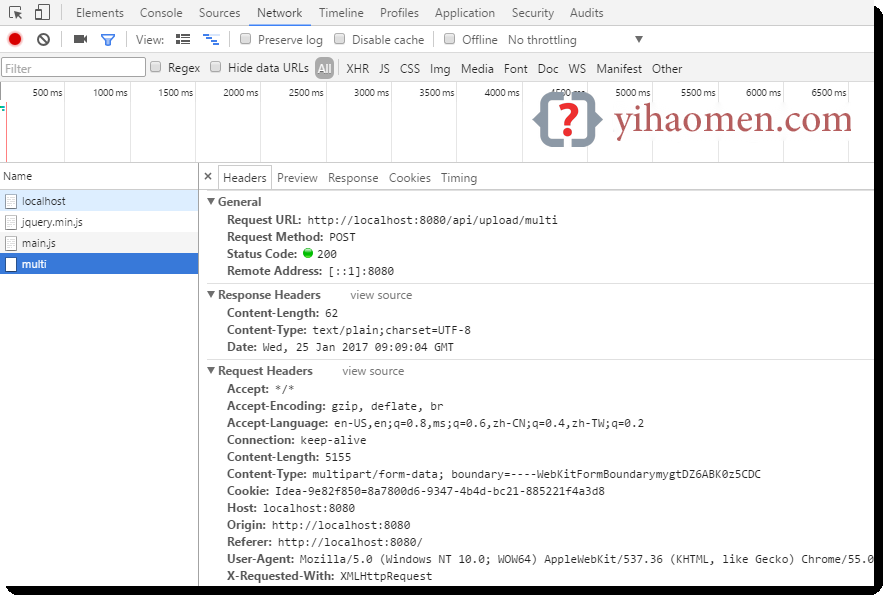

7.2 Google Chrome, review the request and response in the “Network Inspect”

7.3 Google Chrome, “Request Payload”

8. cURL Testing

More testing with cURL command.

8.1 Test single file upload.

$ curl -F file=@"f:\\data.txt" http://localhost:8080/api/upload/
Successfully uploaded - data.txt

8.2 Test multiple file upload.

$ curl -F extraField="abc" -F files=@"f://data.txt" -F files=@"f://data2.txt"  http://localhost:8080/api/upload/multi/
Successfully uploaded - data.txt , data2.txt

8.3 Test multiple file upload, maps to Model.

$ curl -F extraField="abc" -F files=@"f://data.txt" -F files=@"f://data2.txt"  http://localhost:8080/api/upload/multi/model
Successfully uploaded!

8.4 Test a large movie file (100MB), the following error message will be displayed.

$ curl -F file=@"F://movies//300//Sample.mkv"  http://localhost:8080/api/upload/
Attachment size exceeds the allowable limit! (10MB)

9. cURL Testing + Custom Error object

9.1 Create an object to store the error detail.

package com.mkyong.exception;
public class CustomError {
    String errCode;
    String errDesc;
    public CustomError(String errCode, String errDesc) {
        this.errCode = errCode;
        this.errDesc = errDesc;
    //getters and setters

9.2 Update the global exception handler to support CustomError object.

package com.mkyong.exception;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.ControllerAdvice;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.multipart.MultipartException;
import org.springframework.web.servlet.mvc.method.annotation.ResponseEntityExceptionHandler;
import javax.servlet.http.HttpServletRequest;
@ControllerAdvice
public class RestGlobalExceptionHandler extends ResponseEntityExceptionHandler {
    @ExceptionHandler(MultipartException.class)
    @ResponseBody
    ResponseEntity<?> handleControllerException(HttpServletRequest request, Throwable ex) {
        HttpStatus status = getStatus(request);
        return new ResponseEntity(new CustomError("0x000123",
                "Attachment size exceeds the allowable limit! (10MB)"), status);
        //return new ResponseEntity("Attachment size exceeds the allowable limit! (10MB)", status);
    private HttpStatus getStatus(HttpServletRequest request) {
        Integer statusCode = (Integer) request.getAttribute("javax.servlet.error.status_code");
        if (statusCode == null) {
            return HttpStatus.INTERNAL_SERVER_ERROR;
        return HttpStatus.valueOf(statusCode);

9.3 cURL to upload a large file again.

$ curl -F file=@"F://movies//300//Sample.mkv"  http://localhost:8080/api/upload/
{"errCode":"0x000123","errDesc":"Attachment size exceeds the allowable limit! (10MB)"}

Done. Feedback is welcome.

10. Download Source Code

References

1. Spring Boot – Error Handling
2. Spring Boot file upload example
3. Spring MVC file upload example
4. Spring Boot Hello World Example – Thymeleaf
5. Wikipedia – cURL
6. jQuery.ajax()
7. MDN – Using FormData Objects
