Apache Solr Hello World Example

Apache Solr is an Open-source REST-API based Enterprise Real-time Search and Analytics Engine Server from Apache Software Foundation. It’s core Search Functionality is built using Apache Lucene Framework and added with some extra and useful features. It is written in Java Language.

SOLR stands for Searching On Lucene w/Replication. It’s main functionalities are indexing and serching. Like ElasticSearch, it is also a Document-based NoSQL Data Store.

Apache Solr Features:-

• An Open-source
• Supports Full-text Search and Faceted Navigation Feature
• Hit highlighting
• Relevant Results
• Uses Apache Lucene Inverted Index to index it’s documents.
• Supports Recommendations and Spell Suggestions
• Supports Auto-Completion
• Suppots Geo-Spatial Search
• Supports REST Based API (JSON over HTTP)
• Supports Real-time Search and Analytics
• Latest version of Solr (Version 5.x or later) supports Distributed and Colud Technology.
• As it’s written, it supports Cross-platform Feature.
• Built-in Security for Authentication and Authorization
• Supports Streaming

Advantages or Benefits of Apache Solr:-

• An Open-source
• It has very useful Administrative Interface.
• Light Weight with REST API
• It is very fast, simple, powerful and flexible search engine
• Unlike ElasticSearch, it supports not only JSON format, other useful formats too: XML, PHP, Ruby, Python, XSLT, Velocity and custom Java binary output formats over HTTP.
• Highly Available. Easy and Highly Scalable. Robust, fault tolerant and reliable search engine.
• Schema free data store. However, if required we can create a schema to support our data.
• Fast Search Performance because of Apache Lucene Inverted Index.
• Supports both Structured and UN-Structured Data
• Supports Distributed, Sharding, Replication, Clustering and Multi-Node Architecture
• Supports Bulk Operations
• Easily Extendable with new plugins
• Supports Caching Data
• Useful for BigData Environments
• Unlike ElasticSearch, it supports MapReduce algorithm

Drawbacks or Limitations of Apache Solr:-

• Not useful as a Primary Data Store. Only useful as Secondary Data Store.
• Not an ACID compliant Data Store
• Does not support Transactions and Distributed Transactions
• Does NOT supports Joins and Complex Queries
• Does NOT useful to work with Normalized Data

Popular Clients who are using Apache Solr:-

• CNET,Krugle, M TV
• Flipkart.com, Sourceforge.net, guardian.co.uk
• eBay, digg
• Instagram
• AT&T Interactive
• Goldman Sachs
• AOL Music, AOL Travel, AOL YellowPages
• Disney
• Apple, Inc.
• More clients refer to this link

Popular Hadoop distributions like Cloudera, Hortonworks and MapR uses Apache Solr internally to support Search Functionality.

We can use Apache Solr in two flavors:

• Standalone Apache Solr Server
• Cloud and Distributed Apached Solr Server

In this tutorial, we are going to use the Standalone Apache Solr Server v6.4.2 to demonstrate our examples.

1. Install Apache Solr Locally

Please follow these steps to setup Standalone Apache Solr Server locally in Windows, Linux-Based (Like Ubuntu) or Mac OS Environments.

1.1 Windows Environment

• Download latest version of Apache Solr

Use this link to download Apache Solr V. 6.4.2. You will get solr-6.4.2.zip for Windows environments.

• Extract zip file to Local Filesystem

Extracted solr-6.4.2.zip file to F:\solr-6.4.2

• Set Environment Variables

Let us assume SOLR_HOME=F:\solr-6.4.2

PATH=${SOLR_HOME}\bin

1.2 Linux or Mac Environment

• Download latest version of Apache Solr

Use this link to download Apache Solr V. 6.4.2. You will get solr-6.4.2.tgz for Linux or Mac Environments.

• Extract zip file

$ tar -xvf solr-6.4.2.tgz

• Set Environment Variables

Let us assume SOLR_HOME=/home/rambabu/solr-6.4.2

export PATH=${SOLR_HOME}\bin

Now we have installed Apache Solr successfully.

2. Start/Stop Apache Solr Locally

Some commands to manipulate Apache Solr Server.

2.1 Check Status of Apache Solr
Before starting the Solr Server, please execute the following “status” command to know the status.

cd solr-6.4.2
$ ./solr status
No Solr nodes are running.

2.2 Start Apache Solr

$ ./solr start
Archiving 1 old GC log files to /home/rambabu/solr-6.4.2/server/logs/archived
Archiving 1 console log files to /home/rambabu/solr-6.4.2/server/logs/archived
Rotating solr logs, keeping a max of 9 generations
Waiting up to 180 seconds to see Solr running on port 8983 [\]
Started Solr server on port 8983 (pid=24563). Happy searching!

If we observe the above start command logs, we can understand that Apache Solr server is started at default port number: 8983. Now again execute “status” command to know the server status now.

$ ./solr status
Found 1 Solr nodes:
Solr process 24563 running on port 8983
  "solr_home":"/home/rambabu/solr-6.4.2/server/solr",
  "version":"6.4.2 34a975ca3d4bd7fa121340e5bcbf165929e0542f - ishan - 2017-03-01 23:30:23",
  "startTime":"2017-03-22T15:11:30.804Z",
  "uptime":"0 days, 0 hours, 5 minutes, 10 seconds",
  "memory":"35.3 MB (%7.2) of 490.7 MB"}

Start Apache Solr with different port number

$ ./solr start –p 9000

2.3 Stop Apache Solr
Use “stop” command to stop server

$ ./solr stop
Sending stop command to Solr running on port 8983 ... waiting up to 180 seconds to allow Jetty process 24563 to stop gracefully.

2.4 Restart Apache Solr

$ ./solr restart
Sending stop command to Solr running on port 8983 ... waiting up to 180 seconds to allow Jetty process 19442 to stop gracefully.
Archiving 1 old GC log files to /home/rambabu/solr-6.4.2/server/logs/archived
Archiving 1 console log files to /home/rambabu/solr-6.4.2/server/logs/archived
Rotating solr logs, keeping a max of 9 generations
Waiting up to 180 seconds to see Solr running on port 8983 [\]
Started Solr server on port 8983 (pid=19691). Happy searching!

3. Apache Solr Terminology

We will discuss few important ElasticSearch Terminology: Solr Core, Solr Core, Indexing, Document, Field etc.

3.1 What is a Solr Instance?
In Apache Solr, a Solr Instance is an instance a Solr running in the JVM. In Standalone mode, Solr contains only one instance where as in Cloud mode, it contains one or more instances.

3.2 What is a Solr Core?
In Apache Solr, a Solr Core is also known as simply “Core”. A Core is an Index of texts and fields available in all documents. One Solr Instance can contain one or more Solr Cores.
In other words, a Solr Core = an instance of Apache Lucene Index + Solr Configuration (solr.xml,solrconfig.xml etc.)

PS:- Apache Solr uses the following important configuration files:

• solr.xml
• solrconfig.xml
• core.properties

If you want to experiment Apache Solr as Schama Based Architecture, please refer Apache Solr documentation.

3.3 What is Indexing?
In Apache Lucene or Solr, Indexing is a technique of adding Document’s content to Solr Index so that we can search them easily. Apache Solr uses Apache Lucene Inverted Index technique to Index it’s documents. That’s why Solr provides very fast searching feature.

3.4 What is a Document?
In Apache Solr, a Document is a group of fields and their values. Documents are the basic unit of data we store in Apache Cores. One core can contain one or more Documents.

3.5 What is a Field?
In Apache Solr, a Field is actual data stored in a Document. It is a key & value pair. Key indicates the field name and value contains that Field data. One Document can contain one or more Fields. Apache Solr uses this Field data to index the Docuemnt Content.

Important points to remember:

• Apache Solr Standalone Architecture has only one Solr instance where as Solr Cloud Architecture have more instances.
• Apache Solr uses SolrCloud technology to support Cloud Architecture.
• Each Solr Instance can have zero or more Cores.
• Each core can contain zero or more Documents.
• Each Document can contain zero or more Fields.
• Each Filed contains a Key:Value pair. Key is the name of the Filed and Value is the data of the Field.

4. Apache Solr Admin Console

Unlike ElasticSearch, Apache Solr has a Web interface or Admin console. It is one of the advantages of Apache Solr. It is useful for Solr administrators and programmers to view Solr configuration details, run queries and analyze document fields in order to fine-tune a Solr configuration etc.

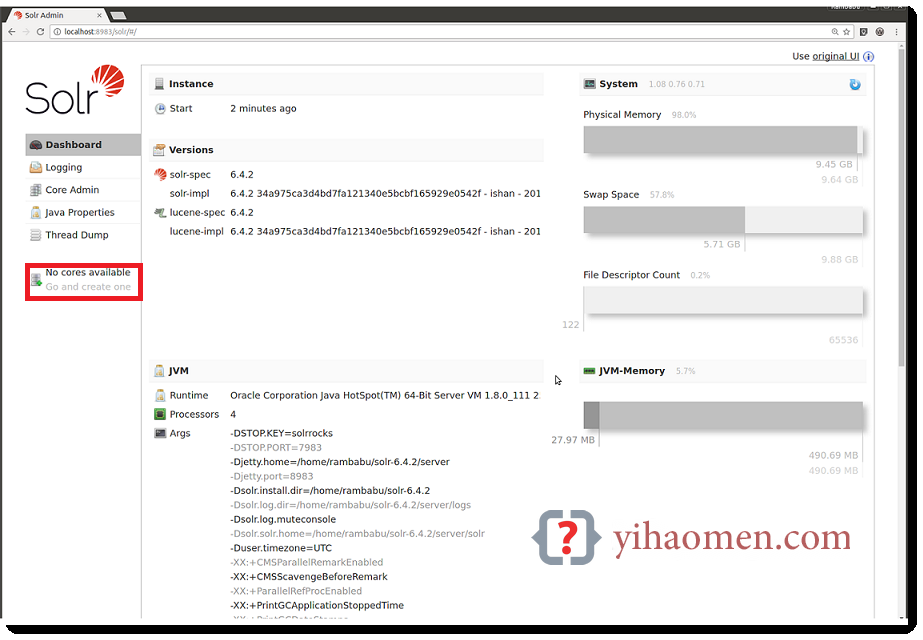

Once we started Apache Solr, we can access its Admin console using: http://localhost:8983/solr/

As shown in the above diagram, initially Apache Solr does NOT have any cores, that’s why it shows “No cores available” at left side panel.

We can use this Admin console:

• Create, Update, Delete (Unload) and View Cores
• Create, Update, Delete and View Documents
• Apache Solr Configurations
• Logging information
• Monitoring information

5. Create “helloworld” Apache Solr Core

We can perform Apache Solr operations like CRUD an Apache Core or CRUD a Doucment or Field uses the following ways:

• Apache Solr Comamnds
• Admin Console
• REST API
• CURL Command

First, let us discuss about how to create Core uses Commands and view them in the Admin console.

Before executing these commands, please start Apache Solr using “solr start” command. We can use “create” command to create an Apache Core as shown below:

Create command syntax:-

$ ./solr create -c <SOLR_CORE_NAME>

Here “create” command is used to create Core and “-c” option specifies Solr Core Name.

Create command Example:-

$ ./solr create -c helloworld
Copying configuration to new core instance directory:
/home/rambabu/solr-6.4.2/server/solr/helloworld
Creating new core 'helloworld' using command:
http://localhost:8983/solr/admin/cores?action=CREATE&name=helloworld&instanceDir=helloworld
  "responseHeader":{
    "status":0,
    "QTime":1636},
  "core":"helloworld"}

If we observe above output, we can understand that “helloworld” core is created successfully. Even we can see the following REST API url in that output to create “helloworld” core.

http://localhost:8983/solr/admin/cores?action=CREATE&name=helloworld&instanceDir=helloworld

Here “action” Query parameter specifies the “CREATE” operation and name defines the Core name and instanceDir specifies a directory name. We can use both name and instanceDir same or different.

After executing this command, if we refresh Admin console, we don’t see “No cores available” at left side panel. Now you can see “Core Selector” option. If we click on that, it will display “helloworld” core in dropdown box. If you select that core, it displays all information at left side panel. It also displays different option just below in that dropdown box:

• Overview

Display overview information about that Core.

• Documents

To Create/Update/Delete Documents into or from Core.

• Query

To query or view Documents or Fields(data).

It also creates a folder “helloworld” under ${SOLR_HOME}/server/solr/ as shown below:

To create an Apache Core with required folder name

Create command Example:-

$ ./solr create -c helloworld -d myhellowolrd

Here our “helloworld” core creates with folder name “myhellowolrd”

6. Add/Update/Import Documents to Core

As we just created “helloworld” Core, it is empty. Does not contain Documents or Data. We can use Apache Solr Admin Console “Documents” option to Add/Update/Import Documents into this core.

We can add Documents by using Content directly in different formats like JSON, XML, Binary, etc or by using the FileUpload option to upload files as Documents directly.

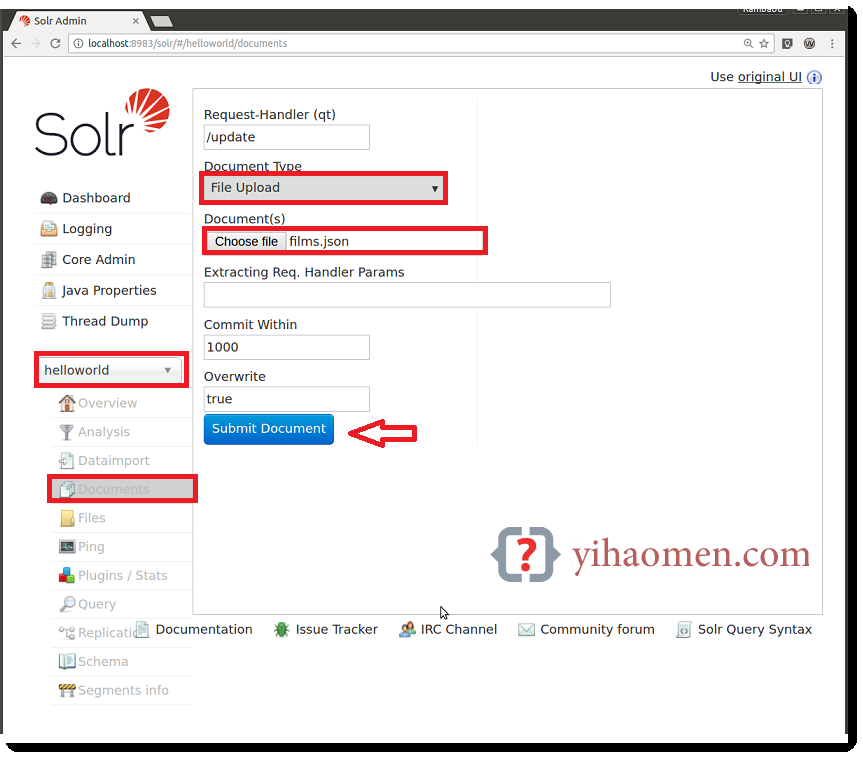

Add Files into “helloworld” Core

• Access Solr Admin Console: http://localhost:8983/solr/
• Click on “Core Selector” option and select “helloworld” core in dropdown box.
• Click on “Documents” option
• Observe “Request-Handler”, it shows “/update” that means we are going to update Core with Documents
• At Document(s), click on “Choose File” option
• Select “films.json” from ${SOLR_HOME}/example/films/
• Click on “Submit Document” button.

It creates a Document with available data in films.json file. We can do the same thing using xml, csv etc. files.

7. Query Documents from Core

We can use either REST API or Admin Console to query Documents from an Apache Core.

Let us explore it using Apache Admin Console now.

• Access Solr Admin Console: http://localhost:8983/solr/
• Click on “Core Selector” option and select “helloworld” core in dropdown box.
• Click on “Query” from the left side panel
• Observe “Request-Handler”, it shows “/select” that means we are going to select or retrieve Documents from Core.
• Click on “Execute Query” button from the right side pannel
• It retrieves all available documents from “helloworld” core

You can access same results using the following REST API call. You will see same the results on the Browser or REST Client.

http://localhost:8983/solr/helloworld/select?indent=on&q=*:*&wt=json

Here “q” represents “query parameters to filter the data. It uses “q=Fieldname:Value” syntax. Here “q=*:*” means query everything. “wt” means “writer type” or “Response type”.
Now let us query with some filtering options. You can access this REST API from Web Browser or any REST Clients like POSTMAN, Sense, Fidler etc.

http://localhost:8983/solr/helloworld/select?indent=on&q=directed_by:"Gary Lennon"&wt=json

Here we have retrieved all Data from Films Document, which are matching this query directed_by=”Gary Lennon”. If you are good in SQL, we can convert this query into the following SQL SELECT command.

SELECT * FROM FILMS WHERE directed_by="Gary Lennon"

You can access same results using the following REST API call. You will see the same results on the Browser or REST Client.

http://localhost:8983/solr/helloworld/select?fl=genre&indent=on&q=directed_by:"Shane Acker"&wt=json

Here “fl” stands for Fields List in Response or Results. We are interested to retrieve only “genre” field. Convert this into SQL Query.

SELECT genre FROM FILMS WHERE directed_by="Shane Acker"

In the same way, please try to experiment with different SELECT queries to retrieve or filter data.

8. Delete Apache Solr Documents

Here we are going to delete one document which matches directed_by=”Zack Snyder” condition. We use same “Request-Handler” = “/update” that means we are going to update the Core. We use “” option that means we are going to delete or remove a Document which matches the given condition.

Here we are using curl command to perform DELETE operation to cover CURL command example too. You can experiment this example with other options like REST client etc.

$ curl http://localhost:8983/solr/helloworld/update/?commit=true -H "Content-Type: application/xml" -d "<delete><query>directed_by:'Zack Snyder'</query></delete>"
<?xml version="1.0" encoding="UTF-8"?>
<response>
<lst name="responseHeader"><int name="status">0</int><int name="QTime">563</int></lst>
</response>

9. Delete Apache Solr Core

We can update Apache Solr Core by using “Request-Handler” = “/update” and doing add/update/delete operations on Documents. We can use either REST API on Browser, Admin Console, REST Client or CURL command to do this. If required, we can remove or delete Cores by using “Unload” option from Apache Solr Admin Console.

Please follow these steps to Unload a Core

• Access Solr Admin Console: http://localhost:8983/solr/
• Click on “Core Selector” option and select “helloworld” core in the dropdown box.
• Click on “Unload” button from the right side panel.
• It removes or unload the selected core from Apache Solr.
• It does not delete the Core folder from “server/solr” path.

10. Why Apache Solr? Why Not Apache Lucene?

As we know, Apache Lucene is the basic Core API for both popular Search Engines: Apache Solr and ElasticSearch. However, Apache Lucene is a plain Java API and useful only for Java-Based Applications.

Like ElasticSearch, Apache Solr is a wrapper on top of the Apache Lucene API. It has exposed that Java API as REST API as shown in the below diagram. Now we can use this Search API in any applications. And also REST API is very flexible and light weight.

11. Apache Solr Vs ElasticSearch Vs Relational Databases

As we know, both Apache Solr and ElasticSearch use Apache Lucene to implement their Core Functionalities. Almost both support same features. Some notable similarities:

• Both uses Apache Lucene under-the-hood.
• Both supports REST Base API.
• Both are Open Source Search Engines.
• Both suppor BigData and Cloud Technologies.
• Both Support Cluster management.
• Both are useful as Secondary Data Stores.
• Both uses Apache Lucene’s Inverted Indexing to support the fast Searching feature.

They have the following differences.

• Apache Solr uses some external Component: SolrCloud to support Cloud and Distributed Architecture where as ElasticSearch has in-built and supports true Cloud and Distributed Architecture.
• Apache Solr uses Apache Zookeepter for Cluster Management where as ElasticSearch uses Zen Discovery for this.
• ElasticSearch supports only JSNO based REST API where as Apache Solr supports many more formats like JSON,XML, Doc, CSV, Binary etc.
• Apache Solr has in-built Security support where as ElasticSearch does not have.
• ElasticSearch supports only Schema-less data store where as Apache Solr supports both Schema-based and Schema less.

Differences between Apache Solr and Relational Databases

• Relational Databases support only Structured data where as Apache Solr both Structured and Un-Structured Data.
• Relational Databases are good for Normalized data where as Apache Solr is good for De-Normalized Data.
• Relational Databases needs Schema to store its data where as Apache Solr supports both Schema-based and Schema less.
• Relational Databases support complex queries and joins where as Apache Solr has not supported them.
• We can use Relational Databases as Primary Data Store where Apache Solr as Secondary Data Store.

References

1. Apache Solr
2. Wikipedia – Apache Solr
3. Elasticsearch
