Spring Boot + Spring Security + Thymeleaf example

A Spring Boot Thymeleaf example, uses Spring Security to protect path /admin and /user

Technologies used :

1. Spring Boot 1.5.3.RELEASE
2. Spring 4.3.8.RELEASE
3. Spring Security 4.2.2
4. Thymeleaf 2.1.5.RELEASE
5. Thymeleaf extras Spring Security4 2.1.3
6. Tomcat Embed 8.5.14
7. Maven 3
8. Java 8

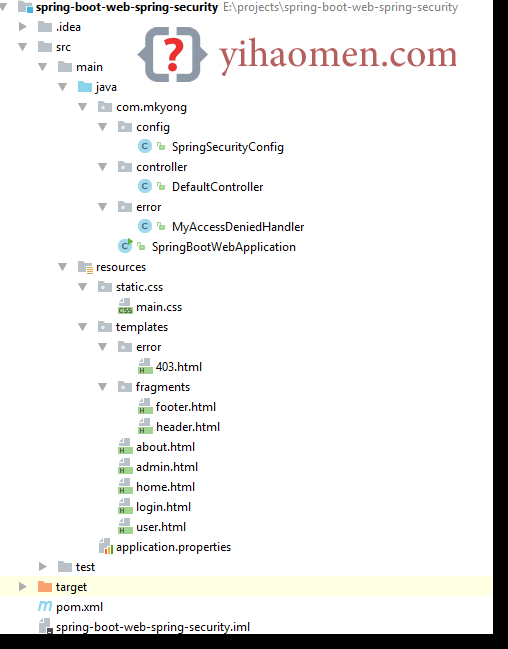

1. Project Directory

2. Project Dependencies

Declares spring-boot-starter-security, it will get anything you need to develop a Spring Boot + Spring Security web application.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
	http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <artifactId>spring-boot-web-spring-security</artifactId>
    <packaging>jar</packaging>
    <name>Spring Boot Web Spring Security</name>
    <description>Spring Boot Web Spring Security Example</description>
    <url>https://www.mkyong.com</url>
    <version>1.0</version>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>1.5.3.RELEASE</version>
    </parent>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <!-- Spring Security -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
		<!-- do you like thymeleaf? -->
		<dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
		<!-- optional, it brings userful tags to display spring security stuff -->
        <dependency>
            <groupId>org.thymeleaf.extras</groupId>
            <artifactId>thymeleaf-extras-springsecurity4</artifactId>
        </dependency>
        <!-- hot swapping, disable cache for template, enable live reload -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <optional>true</optional>
        </dependency>
        <!-- Optional, for bootstrap -->
        <dependency>
            <groupId>org.webjars</groupId>
            <artifactId>bootstrap</artifactId>
            <version>3.3.7</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <!-- Package as an executable jar/war -->
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

Display project dependencies :

$ mvn dependency:tree
[INFO] Scanning for projects...
[INFO]
[INFO] ------------------------------------------------------------------------
[INFO] Building Spring Boot Web Spring Security 1.0
[INFO] ------------------------------------------------------------------------
[INFO]
[INFO] --- maven-dependency-plugin:2.10:tree (default-cli) @ spring-boot-web-spring-security ---
[INFO] org.springframework.boot:spring-boot-web-spring-security:jar:1.0
[INFO] +- org.springframework.boot:spring-boot-starter-thymeleaf:jar:1.5.3.RELEASE:compile
[INFO] |  +- org.springframework.boot:spring-boot-starter:jar:1.5.3.RELEASE:compile
[INFO] |  |  +- org.springframework.boot:spring-boot-starter-logging:jar:1.5.3.RELEASE:compile
[INFO] |  |  |  +- ch.qos.logback:logback-classic:jar:1.1.11:compile
[INFO] |  |  |  |  \- ch.qos.logback:logback-core:jar:1.1.11:compile
[INFO] |  |  |  +- org.slf4j:jcl-over-slf4j:jar:1.7.25:compile
[INFO] |  |  |  +- org.slf4j:jul-to-slf4j:jar:1.7.25:compile
[INFO] |  |  |  \- org.slf4j:log4j-over-slf4j:jar:1.7.25:compile
[INFO] |  |  +- org.springframework:spring-core:jar:4.3.8.RELEASE:compile
[INFO] |  |  \- org.yaml:snakeyaml:jar:1.17:runtime
[INFO] |  +- org.springframework.boot:spring-boot-starter-web:jar:1.5.3.RELEASE:compile
[INFO] |  |  +- org.springframework.boot:spring-boot-starter-tomcat:jar:1.5.3.RELEASE:compile
[INFO] |  |  |  +- org.apache.tomcat.embed:tomcat-embed-core:jar:8.5.14:compile
[INFO] |  |  |  +- org.apache.tomcat.embed:tomcat-embed-el:jar:8.5.14:compile
[INFO] |  |  |  \- org.apache.tomcat.embed:tomcat-embed-websocket:jar:8.5.14:compile
[INFO] |  |  +- org.hibernate:hibernate-validator:jar:5.3.5.Final:compile
[INFO] |  |  |  +- javax.validation:validation-api:jar:1.1.0.Final:compile
[INFO] |  |  |  +- org.jboss.logging:jboss-logging:jar:3.3.1.Final:compile
[INFO] |  |  |  \- com.fasterxml:classmate:jar:1.3.3:compile
[INFO] |  |  +- com.fasterxml.jackson.core:jackson-databind:jar:2.8.8:compile
[INFO] |  |  |  +- com.fasterxml.jackson.core:jackson-annotations:jar:2.8.0:compile
[INFO] |  |  |  \- com.fasterxml.jackson.core:jackson-core:jar:2.8.8:compile
[INFO] |  |  +- org.springframework:spring-web:jar:4.3.8.RELEASE:compile
[INFO] |  |  \- org.springframework:spring-webmvc:jar:4.3.8.RELEASE:compile
[INFO] |  +- org.thymeleaf:thymeleaf-spring4:jar:2.1.5.RELEASE:compile
[INFO] |  |  \- org.thymeleaf:thymeleaf:jar:2.1.5.RELEASE:compile
[INFO] |  |     +- ognl:ognl:jar:3.0.8:compile
[INFO] |  |     +- org.javassist:javassist:jar:3.21.0-GA:compile
[INFO] |  |     \- org.unbescape:unbescape:jar:1.1.0.RELEASE:compile
[INFO] |  \- nz.net.ultraq.thymeleaf:thymeleaf-layout-dialect:jar:1.4.0:compile
[INFO] |     \- org.codehaus.groovy:groovy:jar:2.4.10:compile
[INFO] +- org.springframework.boot:spring-boot-starter-security:jar:1.5.3.RELEASE:compile
[INFO] |  +- org.springframework:spring-aop:jar:4.3.8.RELEASE:compile
[INFO] |  |  \- org.springframework:spring-beans:jar:4.3.8.RELEASE:compile
[INFO] |  +- org.springframework.security:spring-security-config:jar:4.2.2.RELEASE:compile
[INFO] |  |  +- org.springframework.security:spring-security-core:jar:4.2.2.RELEASE:compile
[INFO] |  |  \- org.springframework:spring-context:jar:4.3.8.RELEASE:compile
[INFO] |  \- org.springframework.security:spring-security-web:jar:4.2.2.RELEASE:compile
[INFO] |     \- org.springframework:spring-expression:jar:4.3.8.RELEASE:compile
[INFO] +- org.thymeleaf.extras:thymeleaf-extras-springsecurity4:jar:2.1.3.RELEASE:compile
[INFO] |  \- org.slf4j:slf4j-api:jar:1.7.25:compile
[INFO] +- org.springframework.boot:spring-boot-devtools:jar:1.5.3.RELEASE:compile
[INFO] |  +- org.springframework.boot:spring-boot:jar:1.5.3.RELEASE:compile
[INFO] |  \- org.springframework.boot:spring-boot-autoconfigure:jar:1.5.3.RELEASE:compile
[INFO] \- org.webjars:bootstrap:jar:3.3.7:compile
[INFO]    \- org.webjars:jquery:jar:1.11.1:compile
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 2.072 s
[INFO] Finished at: 2017-05-04T10:13:05+08:00
[INFO] Final Memory: 19M/309M
[INFO] ------------------------------------------------------------------------

3. Spring Security

3.1 Extends WebSecurityConfigurerAdapter, and defined the security rules in the configure method.

For user “admin” :

1. Able to access /admin page
2. Unable to access /user page, redirect to 403 access denied page.

For user “user” :

1. able to access /user page
2. unable to access /admin page, redirect to 403 access denied page.

package com.mkyong.config;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.web.access.AccessDeniedHandler;
@Configuration
public class SpringSecurityConfig extends WebSecurityConfigurerAdapter {
    @Autowired
    private AccessDeniedHandler accessDeniedHandler;
    // roles admin allow to access /admin/**
    // roles user allow to access /user/**
    // custom 403 access denied handler
    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http.csrf().disable()
                .authorizeRequests()
					.antMatchers("/", "/home", "/about").permitAll()
					.antMatchers("/admin/**").hasAnyRole("ADMIN")
					.antMatchers("/user/**").hasAnyRole("USER")
					.anyRequest().authenticated()
                .and()
                .formLogin()
					.loginPage("/login")
					.permitAll()
					.and()
                .logout()
					.permitAll()
					.and()
                .exceptionHandling().accessDeniedHandler(accessDeniedHandler);
    // create two users, admin and user
    @Autowired
    public void configureGlobal(AuthenticationManagerBuilder auth) throws Exception {
        auth.inMemoryAuthentication()
                .withUser("user").password("password").roles("USER")
                .and()
                .withUser("admin").password("password").roles("ADMIN");

3.2 Custom 403 Access denied handler, logs the request and redirect to /403

package com.mkyong.error;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.security.access.AccessDeniedException;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.web.access.AccessDeniedHandler;
import org.springframework.stereotype.Component;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
// handle 403 page
@Component
public class MyAccessDeniedHandler implements AccessDeniedHandler {
    private static Logger logger = LoggerFactory.getLogger(MyAccessDeniedHandler.class);
    @Override
    public void handle(HttpServletRequest httpServletRequest,
                       HttpServletResponse httpServletResponse,
                       AccessDeniedException e) throws IOException, ServletException {
        Authentication auth
                = SecurityContextHolder.getContext().getAuthentication();
        if (auth != null) {
            logger.info("User '" + auth.getName()
                    + "' attempted to access the protected URL: "
                    + httpServletRequest.getRequestURI());
        httpServletResponse.sendRedirect(httpServletRequest.getContextPath() + "/403");

4. Spring Boot

4.1 A controller class, to define the http request and view name.

package com.mkyong.controller;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;
@Controller
public class DefaultController {
    @GetMapping("/")
    public String home1() {
        return "/home";
    @GetMapping("/home")
    public String home() {
        return "/home";
    @GetMapping("/admin")
    public String admin() {
        return "/admin";
    @GetMapping("/user")
    public String user() {
        return "/user";
    @GetMapping("/about")
    public String about() {
        return "/about";
    @GetMapping("/login")
    public String login() {
        return "/login";
    @GetMapping("/403")
    public String error403() {
        return "/error/403";

4.2 Start Spring Boot application.

package com.mkyong;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplication
public class SpringBootWebApplication {
	public static void main(String[] args) throws Exception {
		SpringApplication.run(SpringBootWebApplication.class, args);

5. Thymeleaf + Resources + Static files

5.1 For Thymeleaf files, put in src/main/resources/templates/ folder.

5.2 Thymeleaf fragments, for template layout – header.

<html xmlns:th="http://www.thymeleaf.org">
<head>
    <div th:fragment="header-css">
        <!-- this is header-css -->
        <link rel="stylesheet" type="text/css"
              href="webjars/bootstrap/3.3.7/css/bootstrap.min.css" />
        <link rel="stylesheet" th:href="@{/css/main.css}"
              href="../../css/main.css" />
    </div>
</head>
<body>
<div th:fragment="header">
    <!-- this is header -->
    <nav class="navbar navbar-inverse">
        <div class="container">
            <div class="navbar-header">
                <a class="navbar-brand" th:href="@{/}">Spring Boot</a>
            </div>
            <div id="navbar" class="collapse navbar-collapse">
                <ul class="nav navbar-nav">
                    <li class="active"><a th:href="@{/}">Home</a></li>
                </ul>
            </div>
        </div>
    </nav>
</div>
</body>
</html>

5.3 Thymeleaf fragments, for template layout – footer. Review the sec tag, it is a useful tag to display the Spring Security stuff, refer to this Thymeleaf extra Spring Security for detail.

<html xmlns="http://www.w3.org/1999/xhtml"
	  xmlns:th="http://www.thymeleaf.org"
      xmlns:sec="http://www.thymeleaf.org/thymeleaf-extras-springsecurity4">
<head>
</head>
<body>
<div th:fragment="footer">
    <div class="container">
        <footer>
        <!-- this is footer -->
        © 2017 mkyong.com
            <span sec:authorize="isAuthenticated()">
                | Logged user: <span sec:authentication="name"></span> |
                Roles: <span sec:authentication="principal.authorities"></span> |
                <a th:href="@{/logout}">Sign Out</a>
            </span>
        <script type="text/javascript"
                src="webjars/bootstrap/3.3.7/js/bootstrap.min.js"></script>
        </footer>
    </div>
</div>
</body>
</html>

5.4 List of the Thymeleaf files, nothing special, self-explanatory.

home ~

<!DOCTYPE HTML>
<html xmlns:th="http://www.thymeleaf.org">
<head>
    <title>Spring Boot Thymeleaf + Spring Security</title>
    <div th:replace="fragments/header :: header-css"/>
</head>
<body>
<div th:replace="fragments/header :: header"/>
<div class="container">
    <div class="starter-template">
        <h1>Spring Boot Web Thymeleaf + Spring Security</h1>
        <h2>1. Visit <a th:href="@{/admin}">Admin page (Spring Security protected, Need Admin Role)</a></h2>
        <h2>2. Visit <a th:href="@{/user}">User page (Spring Security protected, Need User Role)</a></h2>
        <h2>3. Visit <a th:href="@{/about}">Normal page</a></h2>
    </div>
</div>
<!-- /.container -->
<div th:replace="fragments/footer :: footer"/>
</body>
</html>

admin ~

<!DOCTYPE HTML>
<html xmlns:th="http://www.thymeleaf.org">
<head>
    <div th:replace="fragments/header :: header-css"/>
</head>
<body>
<div th:replace="fragments/header :: header"/>
<div class="container">
    <div class="starter-template">
        <h1>Admin page (Spring Security protected)</h1>
        <h1 th:inline="text">Hello [[${#httpServletRequest.remoteUser}]]!</h1>
        <form th:action="@{/logout}" method="post">
            <input type="submit" value="Sign Out"/>
        </form>
    </div>
</div>
<!-- /.container -->
<div th:replace="fragments/footer :: footer"/>
</body>
</html>

user ~

<!DOCTYPE HTML>
<html xmlns:th="http://www.thymeleaf.org">
<head>
    <div th:replace="fragments/header :: header-css"/>
</head>
<body>
<div th:replace="fragments/header :: header"/>
<div class="container">
    <div class="starter-template">
        <h1>User page (Spring Security protected)</h1>
        <h1 th:inline="text">Hello [[${#httpServletRequest.remoteUser}]]!</h1>
        <form th:action="@{/logout}" method="post">
            <input type="submit" value="Sign Out"/>
        </form>
    </div>
</div>
<!-- /.container -->
<div th:replace="fragments/footer :: footer"/>
</body>
</html>

about ~

<!DOCTYPE HTML>
<html xmlns:th="http://www.thymeleaf.org">
<head>
    <div th:replace="fragments/header :: header-css"/>
</head>
<body>
<div th:replace="fragments/header :: header"/>
<div class="container">
    <div class="starter-template">
        <h1>Normal page (No need login)</h1>
    </div>
</div>
<!-- /.container -->
<div th:replace="fragments/footer :: footer"/>
</body>
</html>

login ~

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml" xmlns:th="http://www.thymeleaf.org"
>
<head>
    <title>Spring Security Example </title>
    <div th:replace="fragments/header :: header-css"/>
</head>
<body>
<div th:replace="fragments/header :: header"/>
<div class="container">
    <div class="row" style="margin-top:20px">
        <div class="col-xs-12 col-sm-8 col-md-6 col-sm-offset-2 col-md-offset-3">
            <form th:action="@{/login}" method="post">
                <fieldset>
                    <h1>Please Sign In</h1>
                    <div th:if="${param.error}">
                        <div class="alert alert-danger">
                            Invalid username and password.
                        </div>
                    </div>
                    <div th:if="${param.logout}">
                        <div class="alert alert-info">
                            You have been logged out.
                        </div>
                    </div>
                    <div class="form-group">
                        <input type="text" name="username" id="username" class="form-control input-lg"
                               placeholder="UserName" required="true" autofocus="true"/>
                    </div>
                    <div class="form-group">
                        <input type="password" name="password" id="password" class="form-control input-lg"
                               placeholder="Password" required="true"/>
                    </div>
                    <div class="row">
                        <div class="col-xs-6 col-sm-6 col-md-6">
                            <input type="submit" class="btn btn-lg btn-primary btn-block" value="Sign In"/>
                        </div>
                        <div class="col-xs-6 col-sm-6 col-md-6">
                        </div>
                    </div>
                </fieldset>
            </form>
        </div>
    </div>
</div>
<div th:replace="fragments/footer :: footer"/>
</body>
</html>

403 ~

<!DOCTYPE HTML>
<html xmlns:th="http://www.thymeleaf.org">
<head>
    <div th:replace="fragments/header :: header-css"/>
</head>
<body>
<div th:replace="fragments/header :: header"/>
<div class="container">
    <div class="starter-template">
        <h1>403 - Access is denied</h1>
        <div th:inline="text">Hello '[[${#httpServletRequest.remoteUser}]]',
                you do not have permission to access this page.</div>
    </div>
</div>
<!-- /.container -->
<div th:replace="fragments/footer :: footer"/>
</body>
</html>

5.5 For static files like CSS or Javascript, put in /src/main/resources/static/

h1{
	color:#0000FF;
h2{
	color:#FF0000;
footer{
    margin-top:60px;

6. Demo

6.1 Start the Spring Boot web app. This /admin/** is protected, you need login as admin to access it.

$ mvn spring-boot:run
//...

6.2 Access http://localhost:8080

6.3 Access http://localhost:8080/admin, redirect to http://localhost:8080/login

6.4 Invalid username or password http://localhost:8080/login

6.5 Login successful, redirect back to admin page http://localhost:8080/admin , review the footer section, the user info is displayed.

6.6 Access http://localhost:8080/user, redirect to http://localhost:8080/403

6.7 Clicks on the sign out link in the footer, redirect to http://localhost:8080/login?logout

Done. Try login with another username “user” and access the admin page.

References

1. Securing a Web Application
2. Spring Security Reference
3. Spring Boot Security features
4. Spring Boot Hello World Example – Thymeleaf
5. Spring Security Hello World Annotation Example
6. Thymeleaf – Spring Security integration basics
7. Thymeleaf extra – Spring Security integration basics
8. Thymeleaf – Standard URL Syntax
9. Spring Boot + Spring MVC + Spring Security + MySQL
10. Spring Boot – Static content
11. Spring MVC – Inlucde CSS file
